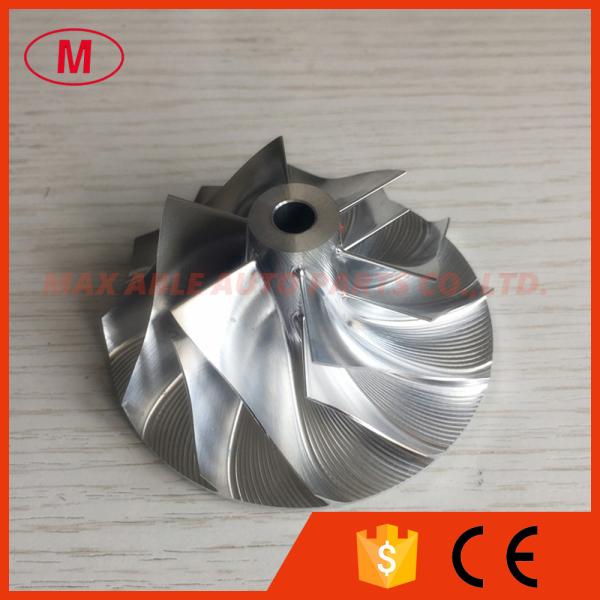

T04B 45.75/69.96mm 6+6 blades 409179-0029 6137-82-8200 Turbo Aluminum 2618 /milling/billet compressor wheel

1.T04B 409179-0029 6137-82-8200 Turbocharger Milling/Aluminum 2618 /Billet compressor wheel 45.75/69.96mm 6+6 blades for Komatsu 409220-0002/409300-0001 Turbo CHRA/ Core for Komatsu 409220-0002/409300-0001

2.Size:

Nose Diameter:14.09mm

Inducer:45.75mm

Exducer:69.96mm

Tip height:6.62mm

Superback:1.68mm

Overall height:31.40mm

Bore size:6.35mm

bore type:through

Trailing angle:50 degree

Cutback:0.0

Blades height:25.08mm

Splitter height:16.15mm

Sp height angle:-5.50

6+6 blades

forward rotation

Tapered tip angle:0 degree

It is for OE compressor housing

3.If you want more details, please send email to me.We can do all we can to satisfy your needs.

4.High quality and competitive price and good service.

5.We can produce as your requirement.

All the billet compressor wheels have been balanced.
